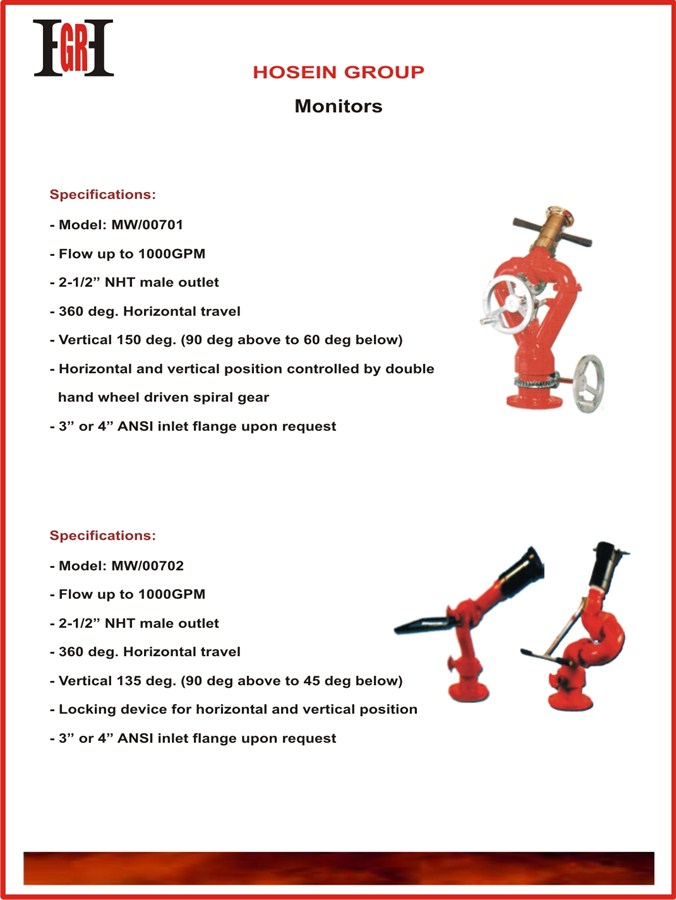

Monitors

 Specifications:
- Model: MW/00701
- Flow up to 1000GPM
- 2-1/2” NHT male outlet
- 360 deg. Horizontal travel
- Vertical 150 deg. (90 deg above to 60 deg below)
- Horizontal and vertical position controlled by double
  hand wheel driven spiral gear
- 3” or 4” ANSI inlet flange upon request



 Specifications:
- Model: MW/00702
- Flow up to 1000GPM
- 2-1/2” NHT male outlet
- 360 deg. Horizontal travel
- Vertical 135 deg. (90 deg above to 45 deg below)
- Locking device for horizontal and vertical position
- 3” or 4” ANSI inlet flange upon request
